Type >> BO << with an additional optical indicator

dimensions:

Type	control range H2 O	threads	length	wide range	depth without switch housing
BO-1	0,1-0,9 l/min.	1/4“ od. 1/2 “	135 mm	39 mm	39 mm
BO-2	0,2-2,5 l/min.	1/4“ od. 1/2 “	135 mm	39 mm	39 mm
BO-6	1,0-6,0 l/min.	1/4“ od. 1/2 “	135 mm	39 mm	39 mm
BO-10	2,0-10,0 l/min.	1/4“ od. 1/2 “	135 mm	39 mm	39 mm
BO-16	2,0-16,0 l/min.	1/2 “	163 mm	39 mm	39 mm
BO-16	2,0-16,0 l/min.	3/4“	176 mm	39 mm	39 mm
BO-50	5,0-50,0 l/min.	3/4“	165 mm	50 mm	50 mm
BO-50	5,0-50,0 l/min.	1 “	183 mm	50 mm	50 mm

The depth of the switch housing 52,5 mm

material


Devices mantle :	Aluminium, gold anodized
Wetted parts :	Brass, plated nickel or Stainless Steel 1.4571 (V4A)
Sight glass :	Borosilikat-Glass (Duran)
Seals :	Perbunan at Brass, Viton at Stainless Steel (V4A)
Max.-temperature :	+ 120 ° C (+ 160 ° C possible)
Max.-pressure :	16 bar

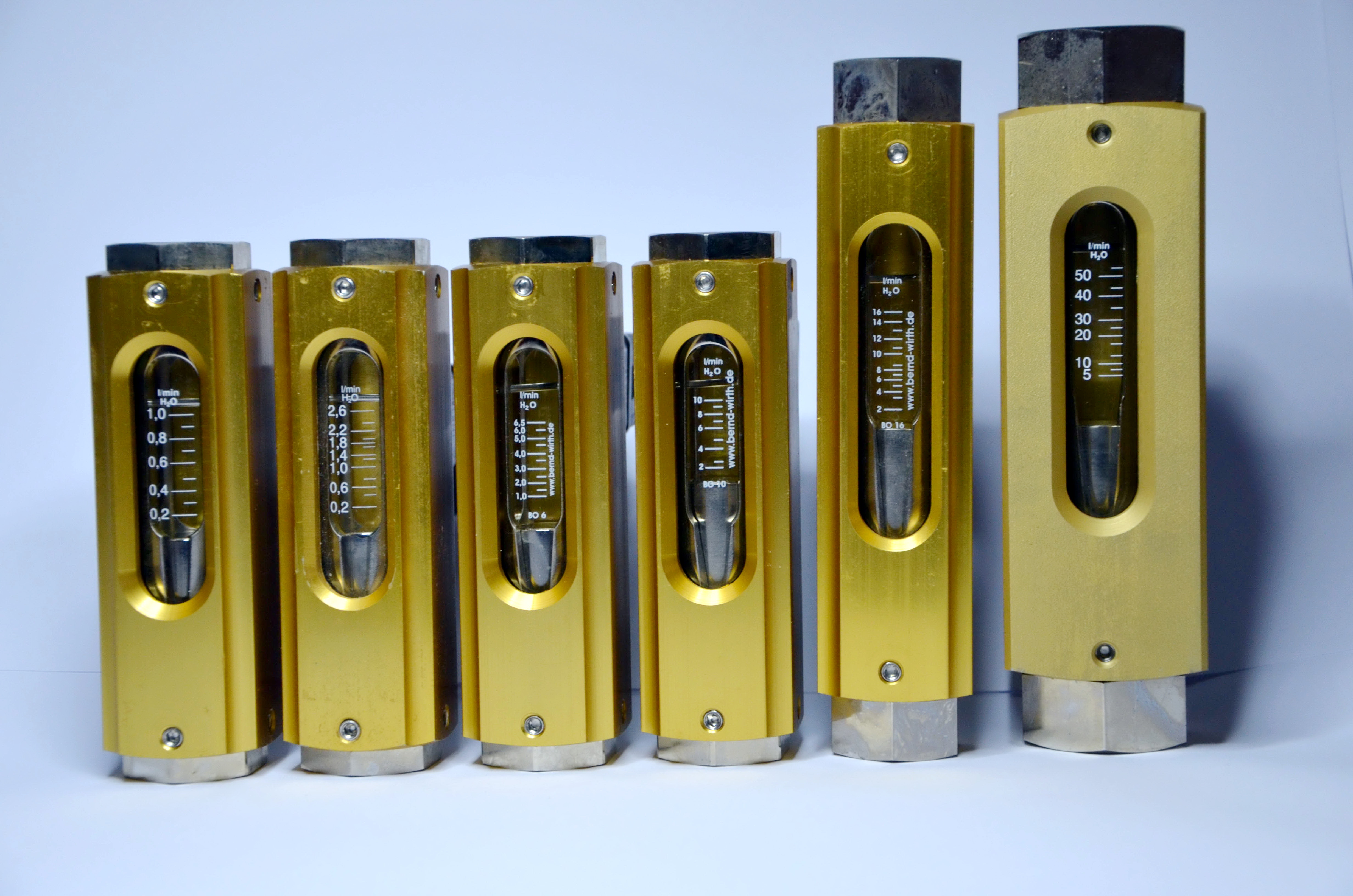

Flow monitor BO with an additional optical indicator

Typ >> BM << such as flow switch BO

Without additional optical indicator

dimensions:


Type	control range H2 O	threads	length	wide range	depth withoutswitch housing
BM-1	0,1-0,9 l/min.	1/4“ od. 1/2 “	134 mm	30 mm	30 mm
BM-2	0,2-2,5 l/min.	1/4“ od. 1/2 “	134 mm	30 mm	30 mm
BM-6	1,0-6,0 l/min.	1/4“ od. 1/2 “	134 mm	30 mm	30 mm
BM-10	2,0-10,0 l/min	1/4“ od. 1/2 “	134 mm	30 mm	30 mm
BM-16	2,0-16,0 l/min.	1/2 “	147 mm	30 mm	30 mm
BM-16	2,0-16,0 l/min.	3/4“	183 mm	30 mm	30 mm
BM-50	5,0-50,0 l/min.	3/4“	182 mm	40 mm	40 mm
BM-50	5,0-50,0 l/min.	1”	183 mm	40 mm	40 mm

The depth of the switch housing 52,5 mm

material

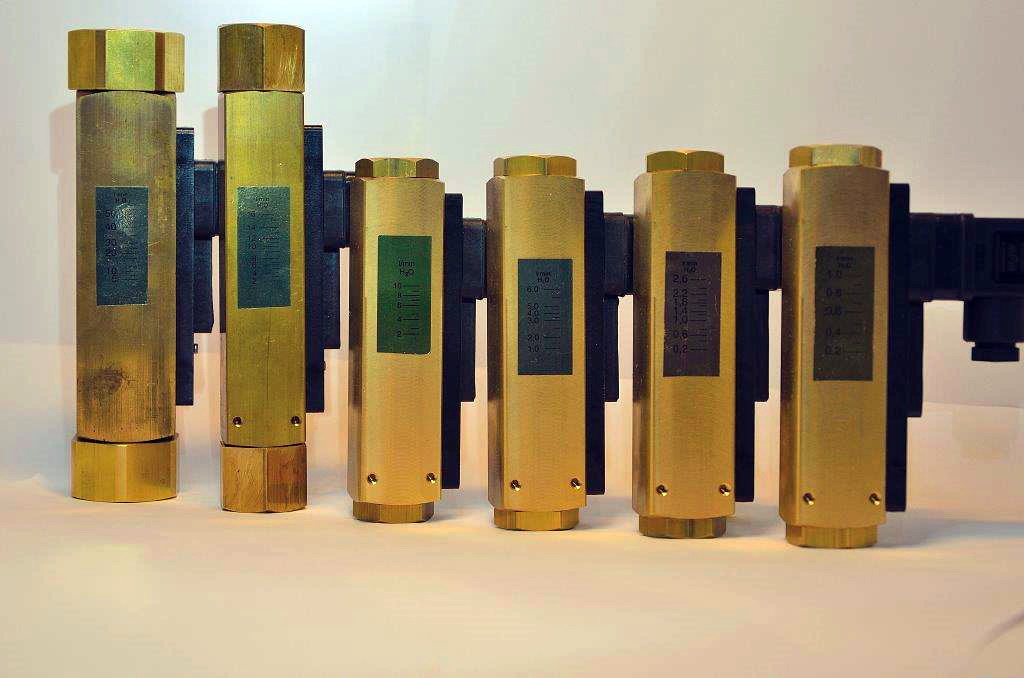

Flow monitor BM without optical indicator
